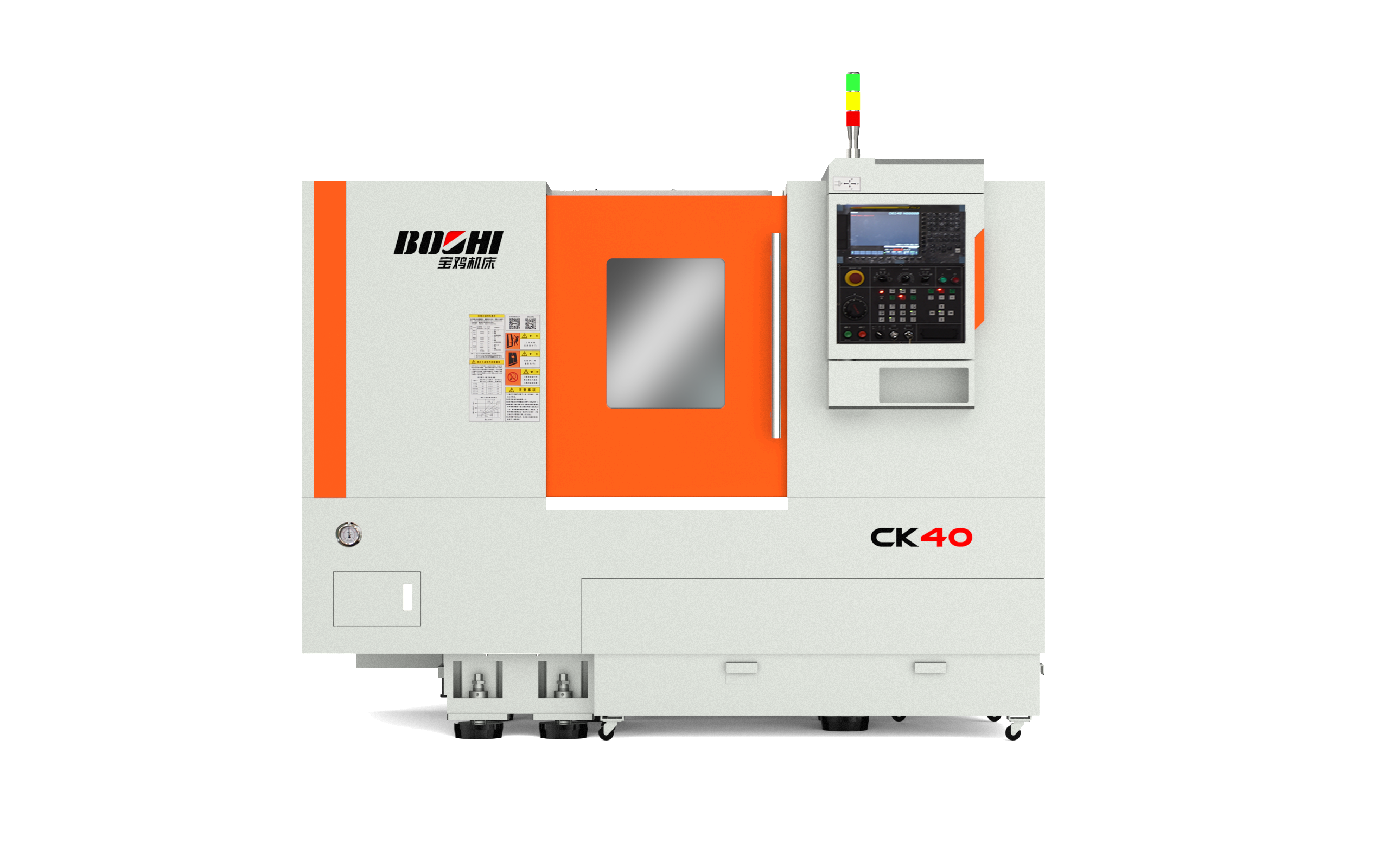

These series machines are high precision CNC machines with good performance-price ratio.The high grade cast iron bed,slant rails and high precision cartridge type spindle are designed to damp vibration. The multi-station turret changes tools in the nearest path. Equipped with FANUC 0i mate control system.The machines,with a new appearance,easy-operated panel and full enclosed protection,are suitable for finishing or semi-finishing medium or small type workpieces.
|
Item |
Unit |
CK40 |
CK40.1000 |
CK40S |
CK40S.1000 |
CK40C |
|
|
Capacity |
Max. swing over bed |
mm |
Φ400 |
Φ400 |
Φ400 |
Φ400 |
Φ400 |
|
Max. swing over slide |
mm |
Φ260 |
Φ260 |
Φ260 |
Φ260 |
Φ260 |
|
|
Max. turning length |
mm |
400 |
1000 |
400 |
1000 |
400 |
|
|
Max. turning dia. |
mm |
Φ285 |
Φ285 |
Φ285 |
Φ285 |
Φ285 |
|
|
Max. bar dia. |
mm |
Φ42 |
Φ42 |
Φ42 |
Φ42 |
Φ42 |
|
|
Spindle |
Hydraulic chuck dia. |
mm |
Φ165 |
Φ165 |
Φ165 |
Φ165 |
Φ165 |
|
Spindle nose |
|
A2-5 (GB/ T5900.1) |
A2-5 (GB/ T5900.1) |
A2-5 (GB/ T5900.1) |
A2-5 （GB/T5900.1） |
A2-5 (GB/ T5900.1) |
|
|
Spindle thru-hole |
mm |
Φ57 |
Φ57 |
Φ57 |
Φ57 |
Φ57 |
|
|
Spindle speed |
r/min |
70-3000 |
70-3000 |
70-3000 |
70-3000 |
80-4500 |
|
|
Power of main motor |
kW |
7.5 |
7.5 |
7.5 |
7.5 |
7.5 |
|
|
Tailstock |
Quill dia./travel |
mm |
Φ70/80 |
Φ70/80 |
Φ70/80 |
Φ70/80 |
Φ70/80 |
|
Quill taper hole |
MT No. |
4 |
4 |
4 |
4 |
4 |
|
|
Carriage |
Slant angle |
DEG |
45° |
45° |
45° |
45° |
45° |
|
Travel X/Z |
mm |
165/410 |
165/1030 |
165/410 |
165/1030 |
165/410 |
|
|
Rapid traverse X/Z |
m/min |
12/16 |
12/16 |
12/16 |
12/16 |
30/24 |
|
|
Turret |
Number of station |
|
8/12 |
8/12 |
8/12 |
8/12 |
8/12 |
|
Tool size (turning/boring) |
mm |
20×20/Φ32 |
20×20/Φ32 |
20×20/Φ32 |
20×20/Φ32 |
20×20/Φ32 |
|
|
Others |
Power source |
kVA |
25 |
25 |
25 |
25 |
25 |
|
Dimensions (L×W×H) |
mm |
2370×1670×1970 |
3200×1700×1910 |
2370×1670×1970 |
3195×1695×1970 |
2370×1670×1970 |
|
|
Gross weight |
kg |
3000 |
4500 |
3000 |
4500 |
3000 |
|
