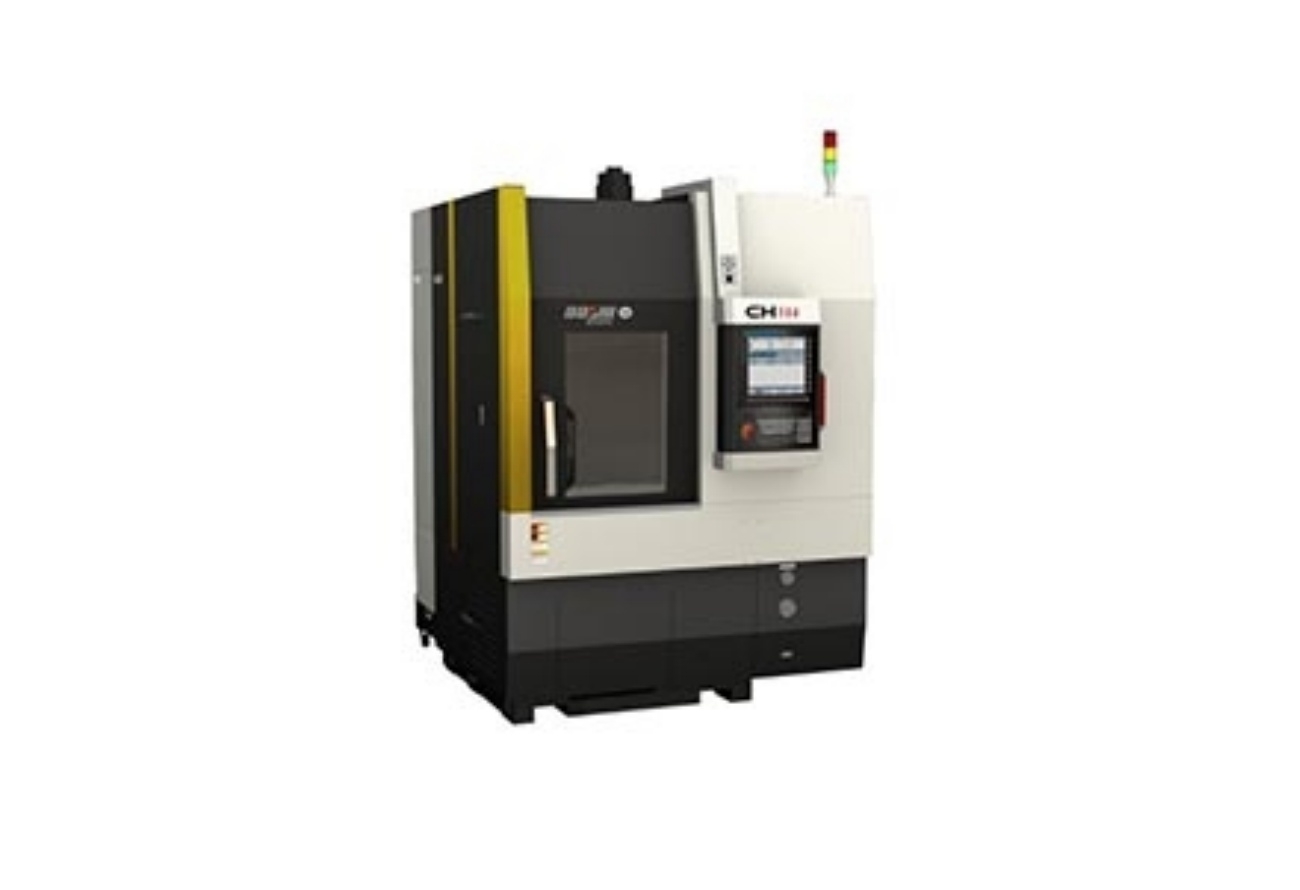

CH514 is a vertical turning center with linear rolling guideway, which is convenient for workpiece clamping and has a small footprint. Equipped with FANUC 0i-TF(1) CNC system, power tool holder with milling and drilling functions, it can complete most or all of the processing of complex parts under one setup, especially suitable for complex small and medium-sized disks and cover parts. It can be better adapted to the needs of automobile, light industry, machinery and other industries.
|
|
Items |
unit |
specifications |
|
Capacity
|
Max. swing diameter over bed |
mm |
φ650 |
|
Max. swing diameter over slide |
mm |
φ550 |
|
|
Max. cutting diameter |
mm |
φ450 |
|
|
Max. cutting height |
mm |
420 |
|
|
Spindle
|
Hydraulic chuck diameter |
mm |
φ 305 (12 "medium real) |
|
Spindle nose |
|
A2-8(GB/T5900.1) |
|
|
Spindle speed |
rpm |
30-3000 |
|
|
Main motor power (continuous/30 minutes) |
kW |
18.5/22 |
|
|
feed
|
Rapid feed speed X/Z |
m/min |
12/16 |
|
Travel X/Z |
mm |
440/550 |
|
|
Ball screw diameter X/Z |
mm |
φ40/φ50 |
|
|
Turret
|
Turret form |
|
BMT65/ER32 power turret |
|
Tool capacity |
pcs |
12 |
|
|
Tools size |
mm |
25×25/Ф40 |
|
|
Rotating tools motor power (continuous 30 minutes) |
Kw |
3.7/5.5 |
|
|
Max. speed of rotary tool |
r/min |
4000 |
|
|
Max. clamping diameter of power tools |
mm |
φ18 |
|
|
other
|
Power |
KVA |
50 |
|
dimensions (length x width x height) Excluding chip conveyor |
mm |
2400X1880X2850 |
|
|
weight |
Kg |
6500 |
